Blad 5.

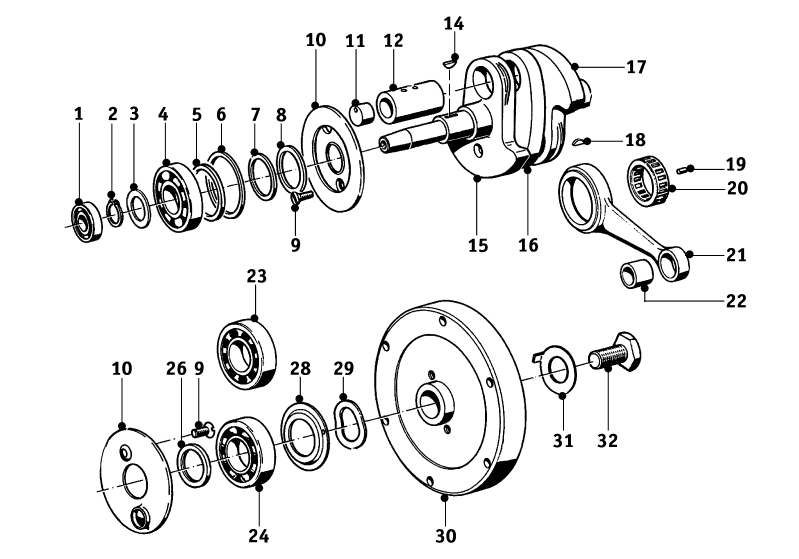

| No. | Part nr. | Description | Add info. | price list | gebruikt | pr used/st |
nieuw | pr new/st |
|---|
Onderdelen nieuw, de helft van de prijslijst, gebruikt een kwart.
| 3 | 11210016201 | Shim 0.5 mm | R50 | 3,56 | 6 | ||||
| 11210016268 | Spacer ring 3.6 / 3.8 mm | R50/2, R50S, R60/2, R69, R69S | 4,17 | 3 | |||||
| 11210016266 | Spacer ring 2.0 mm | R50/2, R50S, R60/2, R69, R69S | 5,59 | 3 | 8 | ||||
| 9 | 07119900106 | Countersunk screw | 6x10 mm | 0,50 | 42 | ||||
| 10 | 11210016216 | Oil slinger | R50 | 15,00 | 1 | ||||
| 11210016217 | Oil slinger | R60 | 15,49 | 2 | |||||
| 14 | 07119951480 | Woodruff key | 5x6.5 mm zie bladzijde 28 | 1,52 | |||||
| 18 | 11210016132 | Woodruff key | 2,54 | 3 | |||||
| 20 | 11240017720 | rollercage | r69s gebruikt 33,46 | 33 | 4 | ||||
| 22 | 11240017150 | Wrist pin bushing | 20 mm | 10,16 | 4 | ||||
| 31 | 11210016225 | Lock plate | 3,05 | 5 | |||||
| 32 | 11220016251 | Hex. Head screw | 16,42 | 2 |
