Cruise Control.

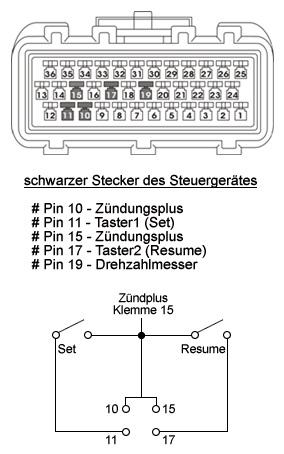

diagram taken from www.blacklandy.de LR-88

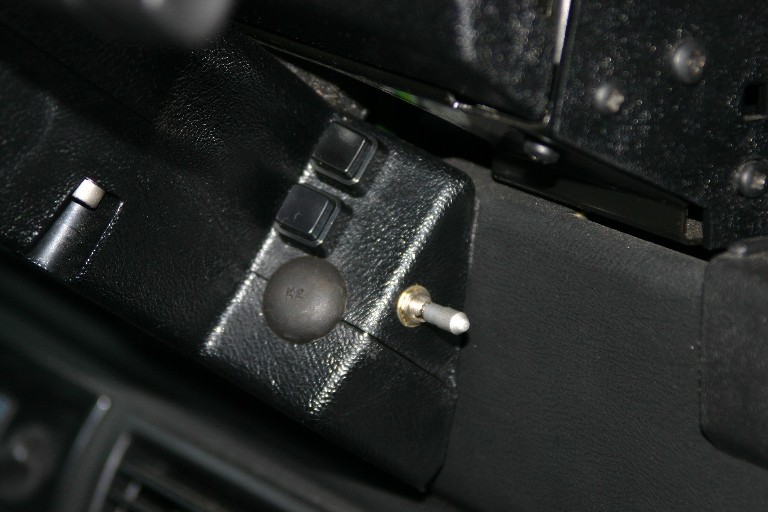

Between zundplusklemme 15, and the pushbuttens I put an extra  switch.

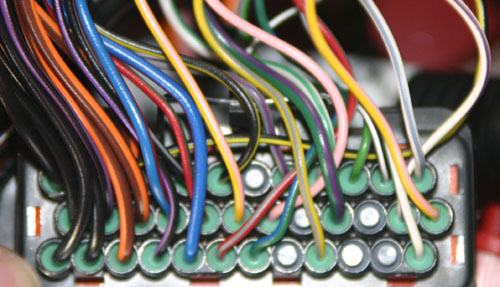

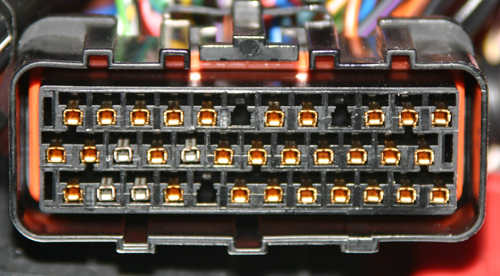

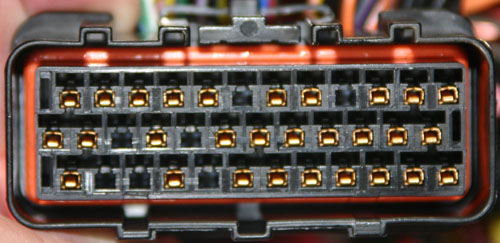

for pin lay-out see this link

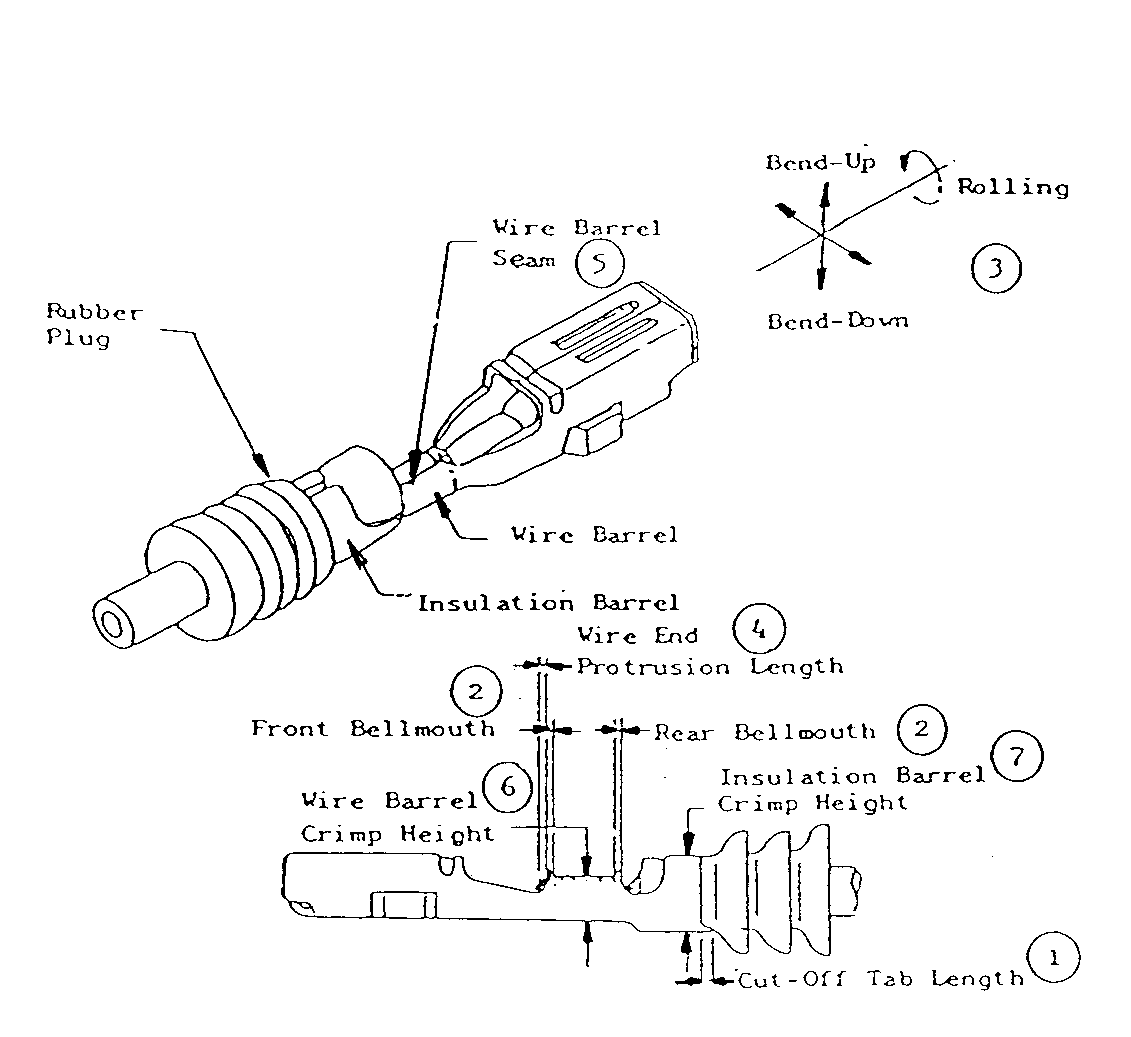

connection specs. from AMP 114-3040.

Warnings:

.070" Series Rec. (0.5 to 2.0 mm2  344113-1
Please Note: This receptacle is simular to 345806-1, but
had modified internal beams, which reduce the insertion
force of the receptacle onto the header tabs. It also
is gold plated on the contact areas. Apart from these
differences, this receptacle can be used with the same
cables [including 0.5 mm2) and seals 345806-1

N.B. under no circumstances must tin plated receptacles
be used for this wire-to-board system
Likewise, goldplated receptacles must not be used on
the wire-to-wire system



Insulation barrel:

plugdia cable mm
green1,4-1,7
yellow1,8-2,4
red2,6-3,3

Receptacle:

receptaclecable mmwire mm2strip-lenght mm
183035-11,4-1,70,3-0,5   [22-20 AWG]3-3,5
183025-11,8-3,30,75-1,5 [18-16 AWG]3-3,5
 1,8-3,31,5-2,5   [16-14 AWG]

Pins:

pin
183036-11,4-1,70,3-0,5
183024-11,8-3,30,75-1,5

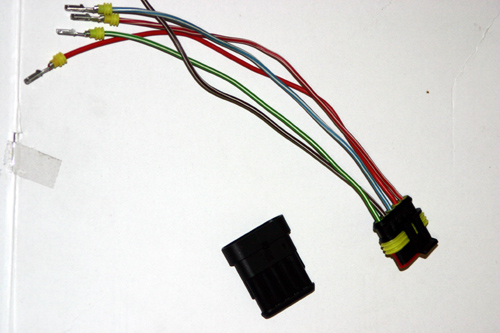

Superseal 5.

positionecu- connector contra cable
110green/whitepink
211brown/whiteyellow
315blue/whiteblue
417redgreen
519red/white
