Resperation tube diesel tank       Home            24-04-2011

tekst in blauw geeft links aan naar onderliggende bladzijden

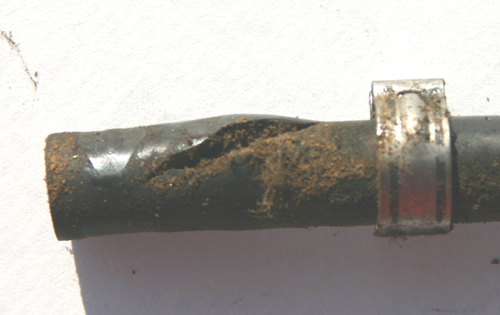

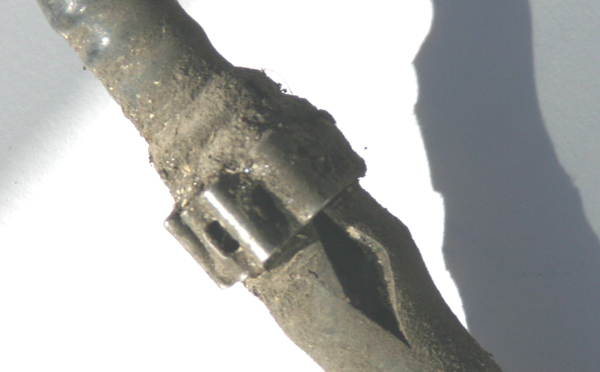

Tube was riped/broken on both sides

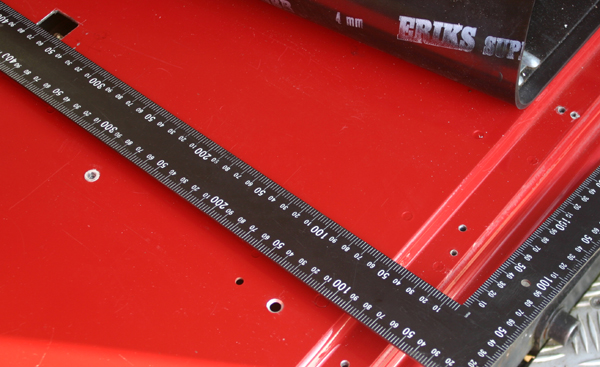

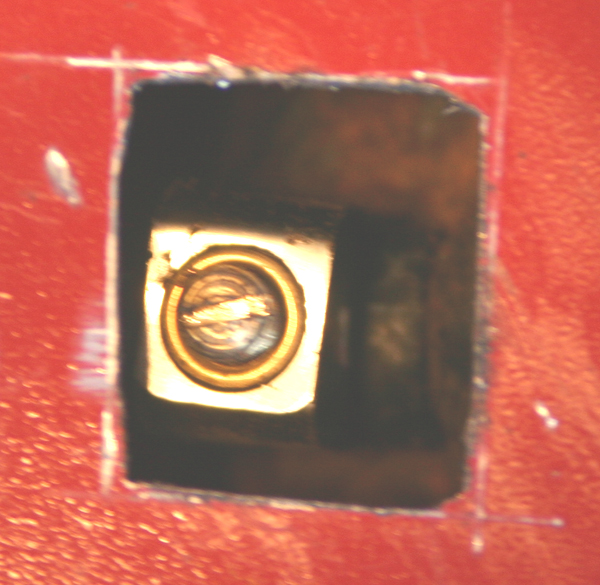

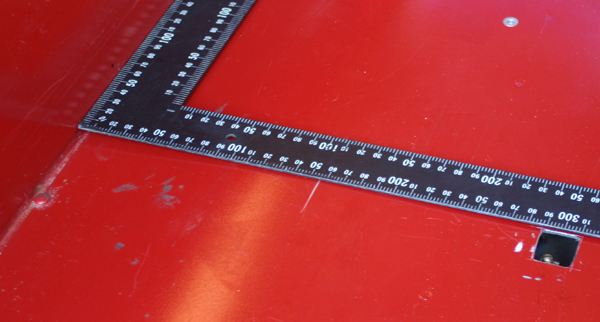

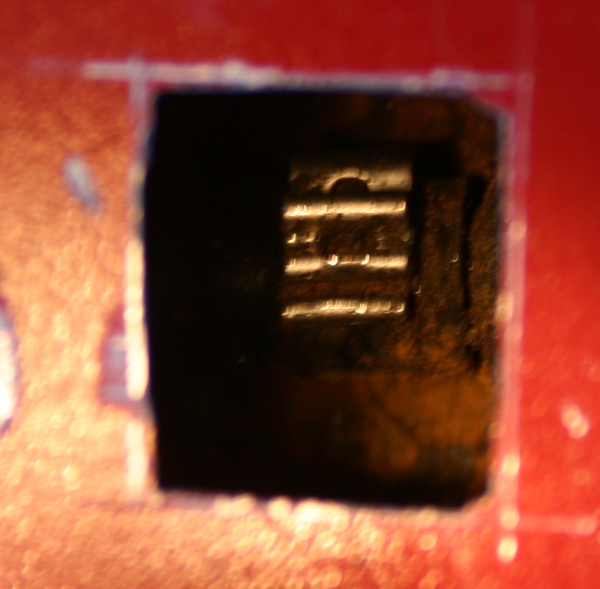

In order to remove the broken tube at the tank site you have to lower the diesel tank or to make a small hole for accessing the clamp.

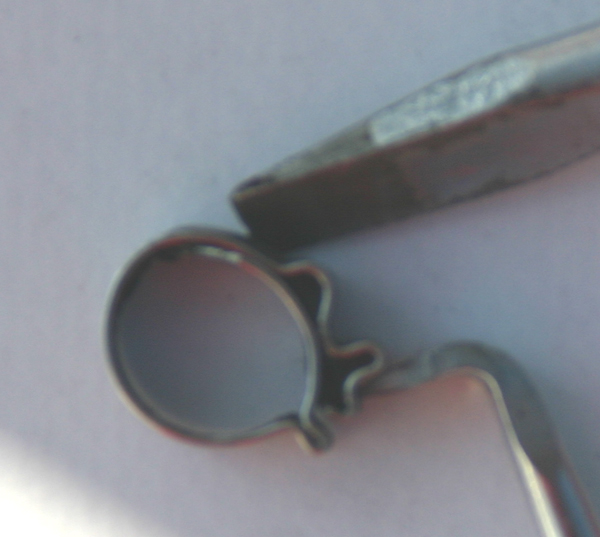

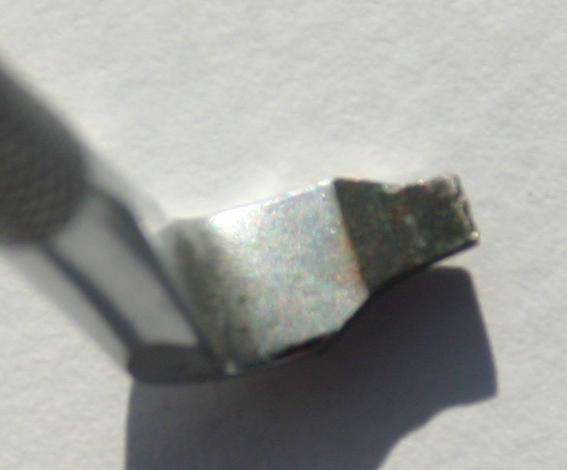

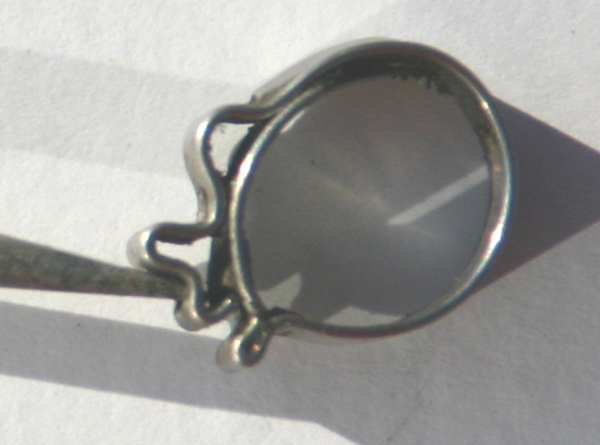

When you remove the clamp through the hole at the tank site you really have to understand how to open the clamp, the clamp at the other site is easy to access and could be used for training yourselves. I needed some tools to open the clamp at the tank site.

Attention the tank is of plastic and no strain should be applied to it.

I replaced the broken tube by a standard reinforced diesel tube and used at the tank site a different type of clamp.

Some pictures:
