It takes some time to remove the diesel pump for the TD5 engine from the tank, the tank has to be lowered.


Some people have made a hole in the floor for accessing the pump.

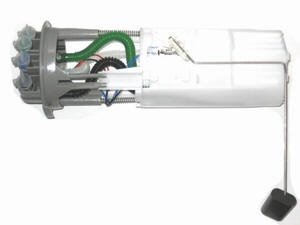

Part numbers for  TD5 fuel pump:

WFX000250 defender 90  from 140 euro [Allmakes]

WFX000260 defender 110/130  from 140 euro

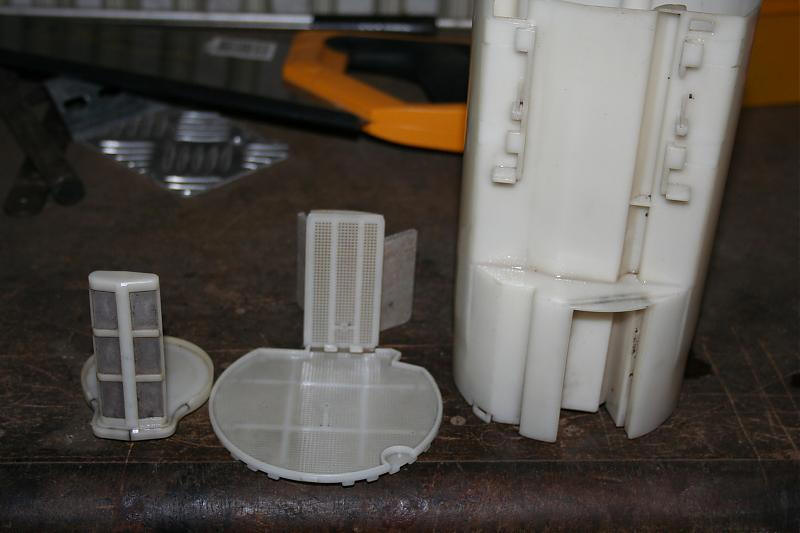

foto from Mikesch01Marco via

WFX000280 discovery series 2   around 140 euro


gasket: ESR3806A = WGQ500020

locking ring ESR3808
