External  rollcage defender 110 HT, central legs     Main            07-11-2008    Click on the photo's to enlarge them.

tekst in blauw geeft links aan naar onderliggende bladzijden

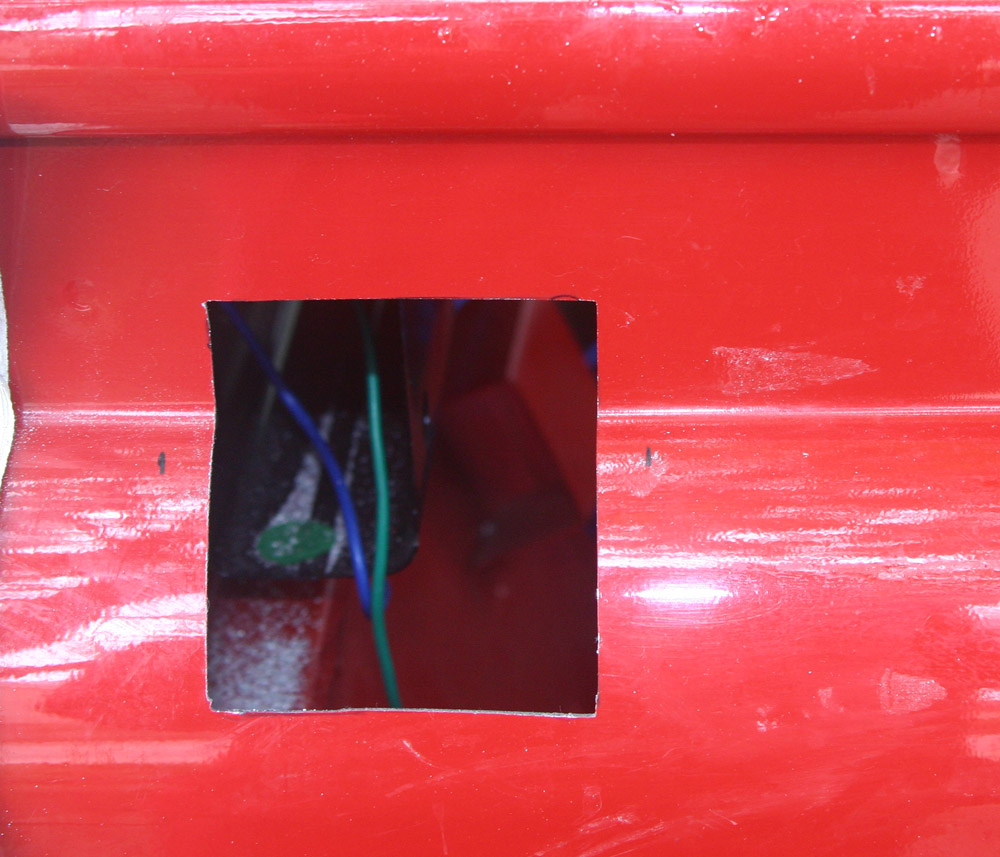

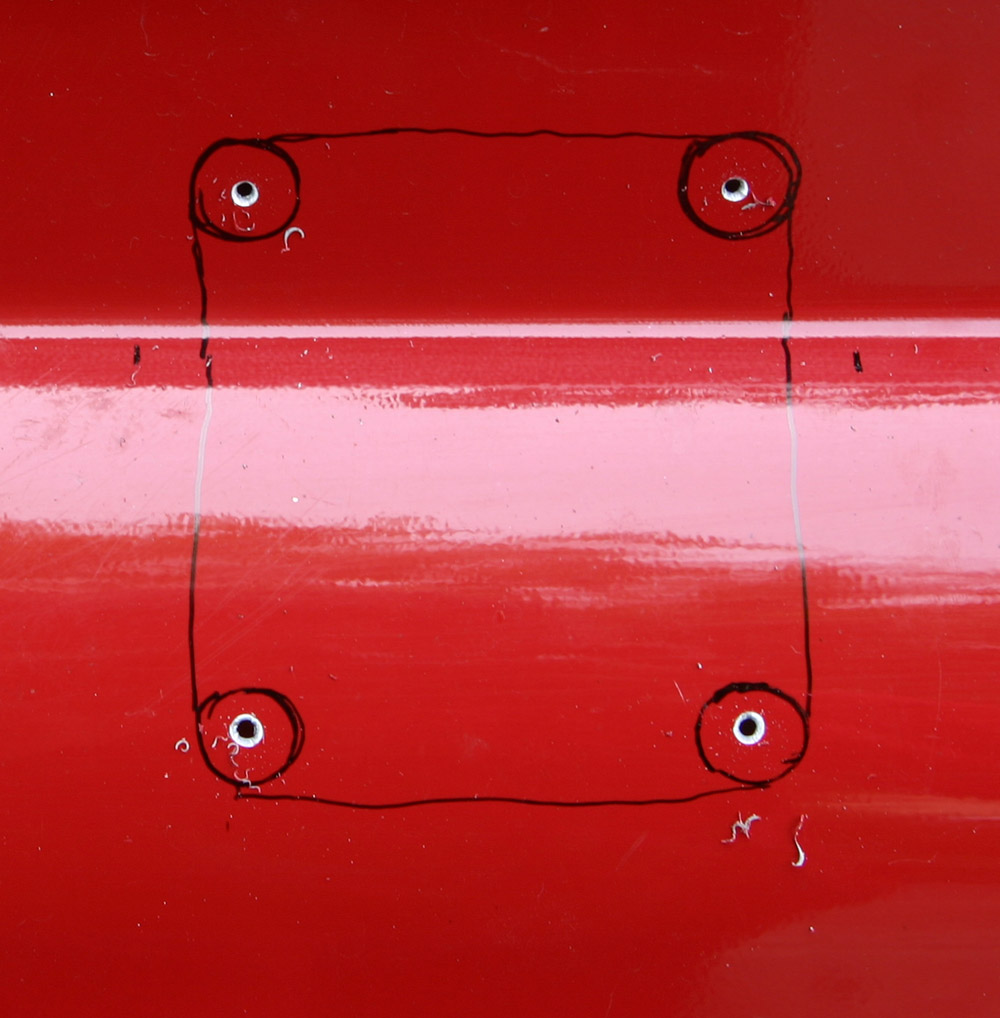

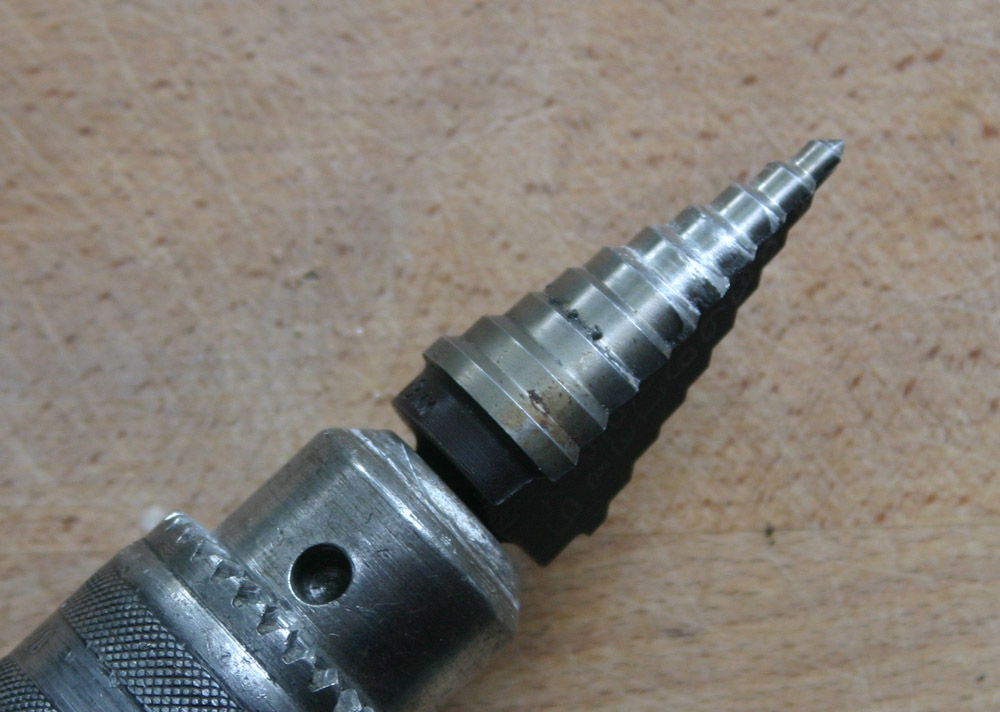

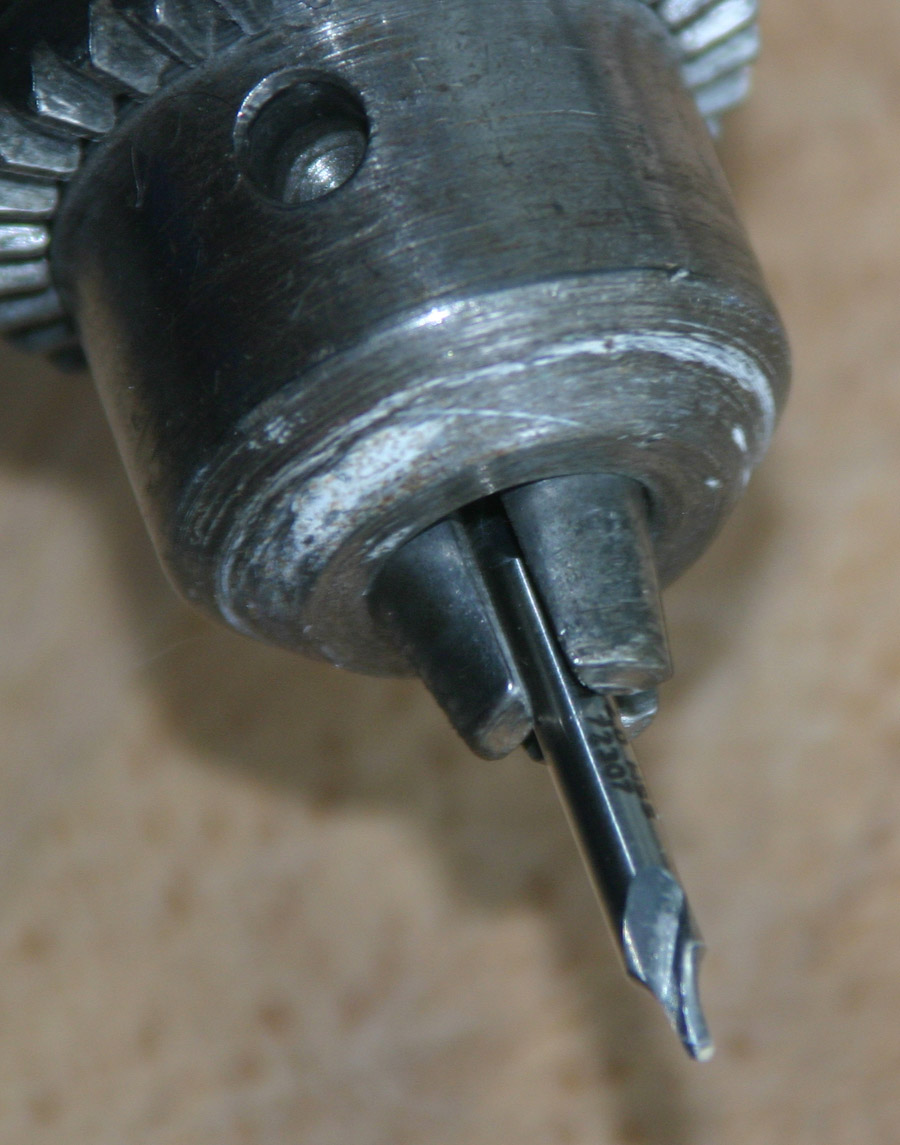

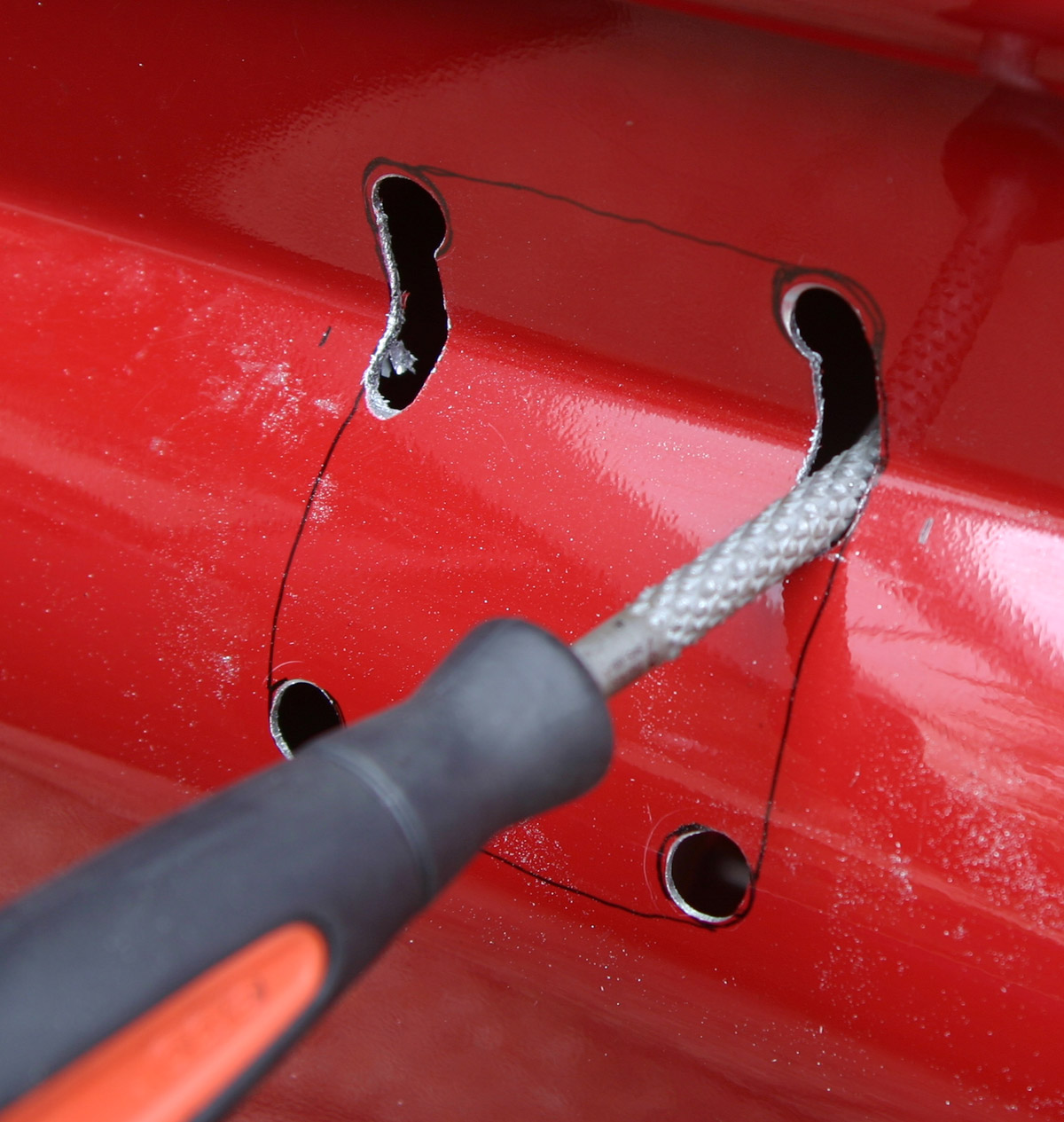

Draw the possition of the hole for the centre legs and cut it out.

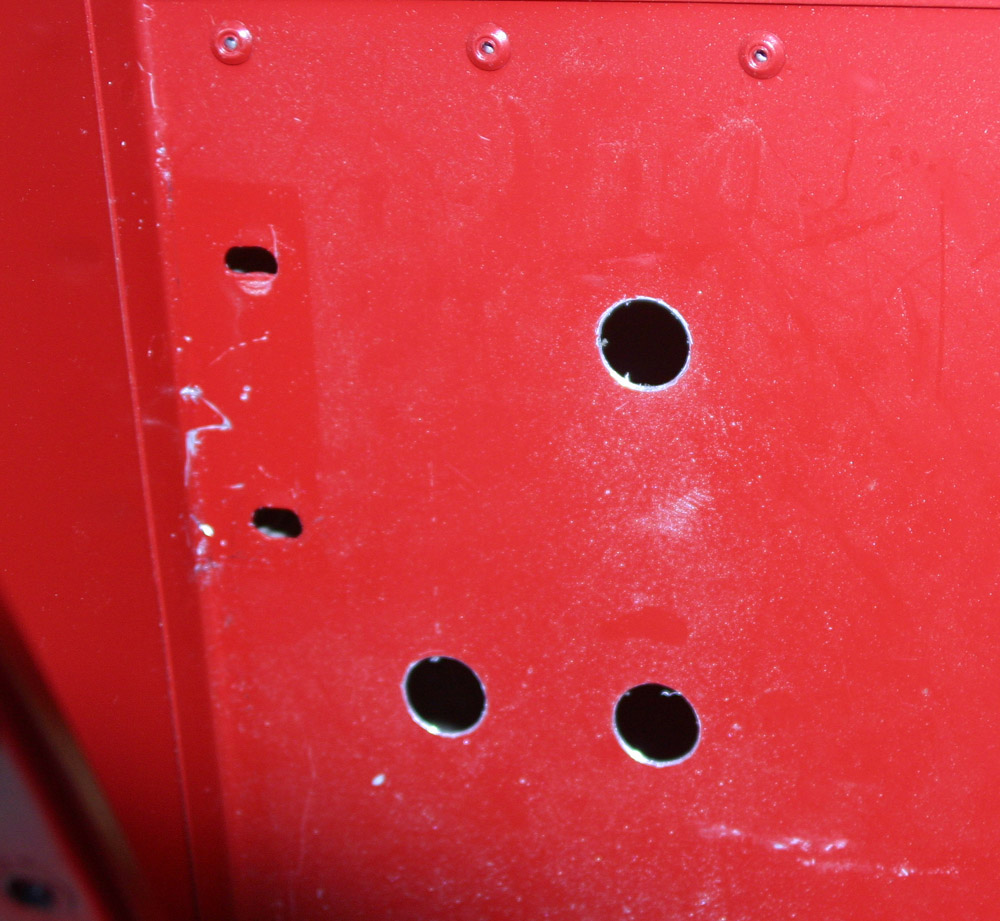

Inside the car some holes have to be made for the crossmember using a shablone if you like..

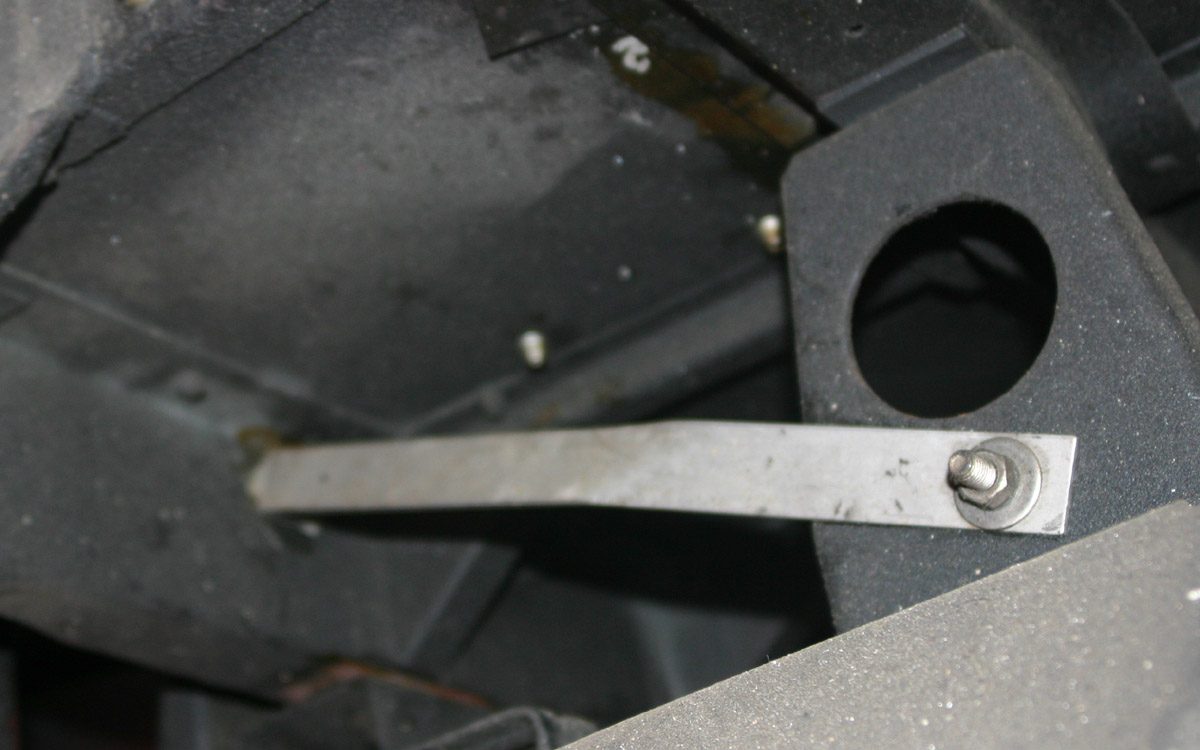

Under the car the seatbeltstrip has to be removed and refitted in a little different manner afterwards.

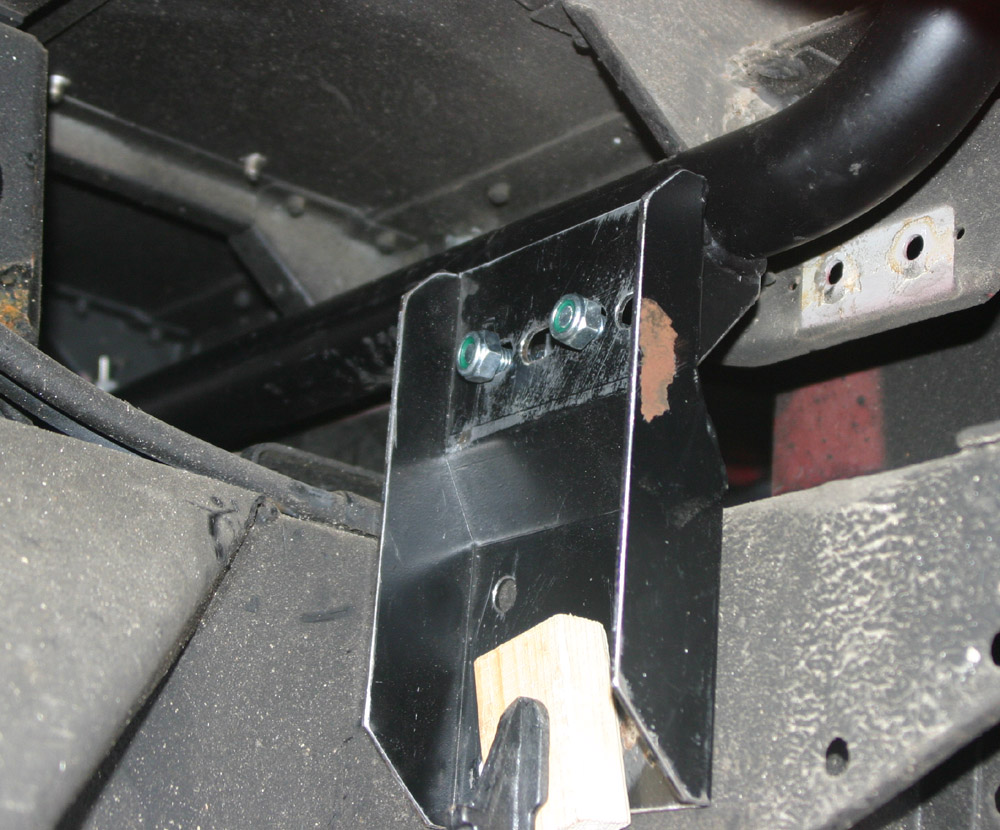

As well as the two most inner brackets at the position where the tube is connected to the frame. I had to take off some material from the brackets to make it fit in the origenal place.




The tube seen on the picture is not of a seemless type.
Between the bracket and the tube a spacer of 10 mm is needed.
