External  rollcage defender 110 HT   Main            07-11-2008    Click on the photo's to enlarge them.

tekst in blauw geeft links aan naar onderliggende bladzijden

Introduction. [ spelling have to be corrected . If you have questions or want to see some extra pictures, please ask as long as these pages are under construction]]

The following pages are written with the experience of only one assembling.

And indicate how I would do a next assembly. In fact the pages are much systematicaly then I could be due to several reasons.

The needed accuracy of working is 1 mm.

• The package
• Necessary measurements.
• First decision.
• Pre-assembly work
• Cage central inner legs
• Cage rear inner legs
• Cage front inner legs.
• Problems and adaptations

Links to other pages with information about rollcages:

        http://www.roverworld.com/rollbar_english.htm

        http://www.nnin.net/gallery2/defender/cageinstall/?g2_page=2

        http://www.viermalvier.de/content/view/51/66/

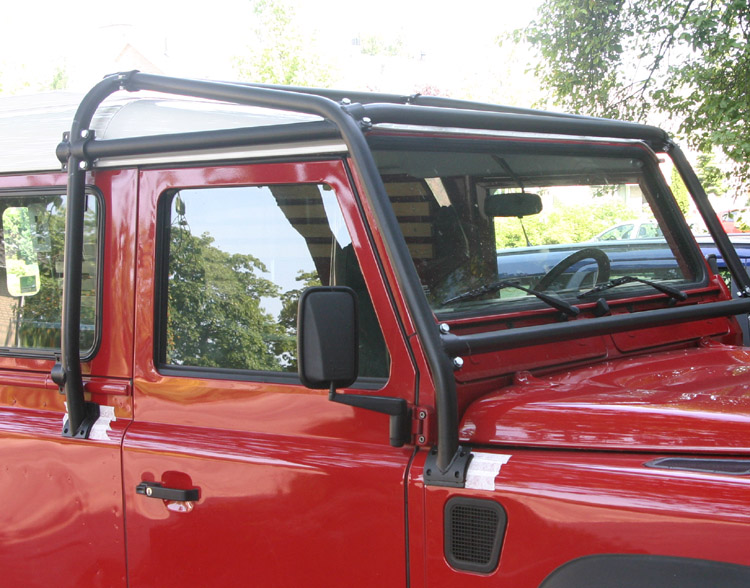

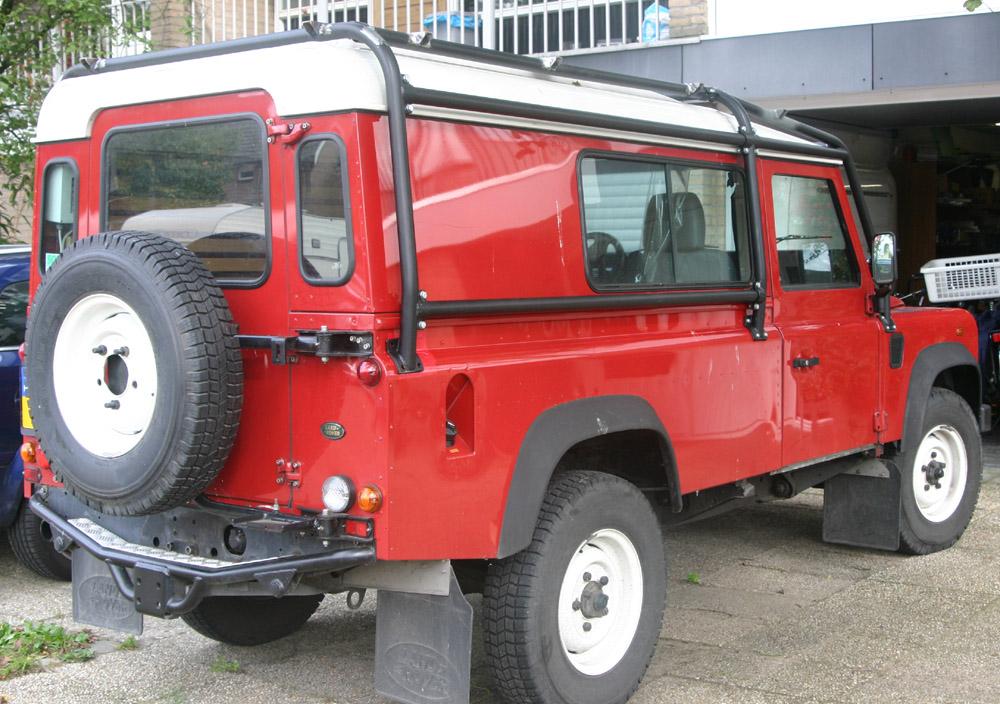

The first test fit of the front parts.                Almost ready
