Alternative console mounting screws.

It takes around 20 minutes to remove the centre console the official way and you have all chances to ruin the phillips screws.

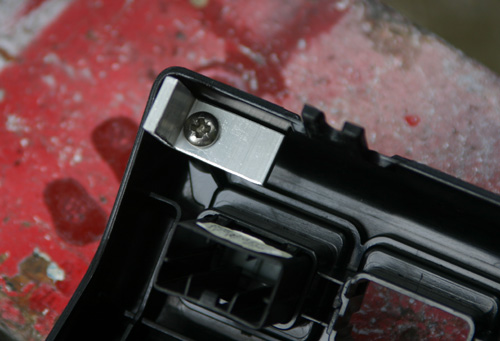

At the two corners of the radio console there is a 25x25x3 aluminium profile and a 3 mm longer phillips screw,

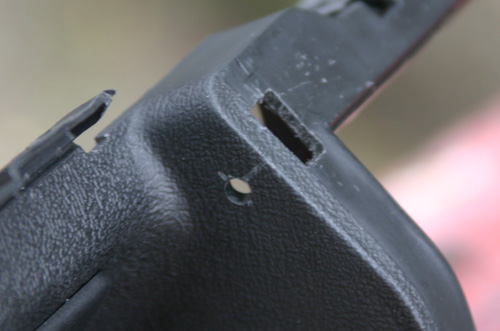

In the opposite part there is a slot and a hole made

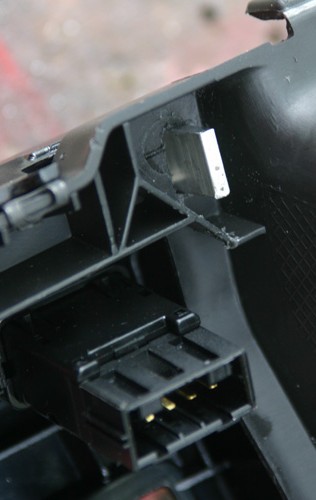

seen from behind

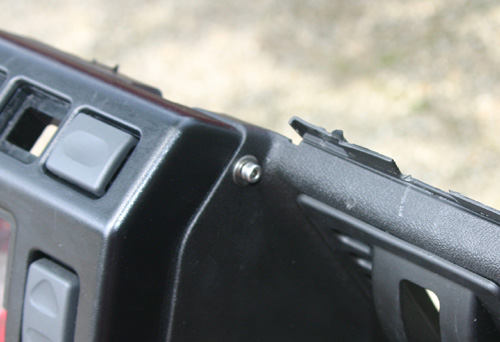

M4 stainless Allen bolt and large washer, the three Phillips screws on top are not used anymore making an easy removal possible.
